Thuis ProductenTFT-LCD-scherm2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI

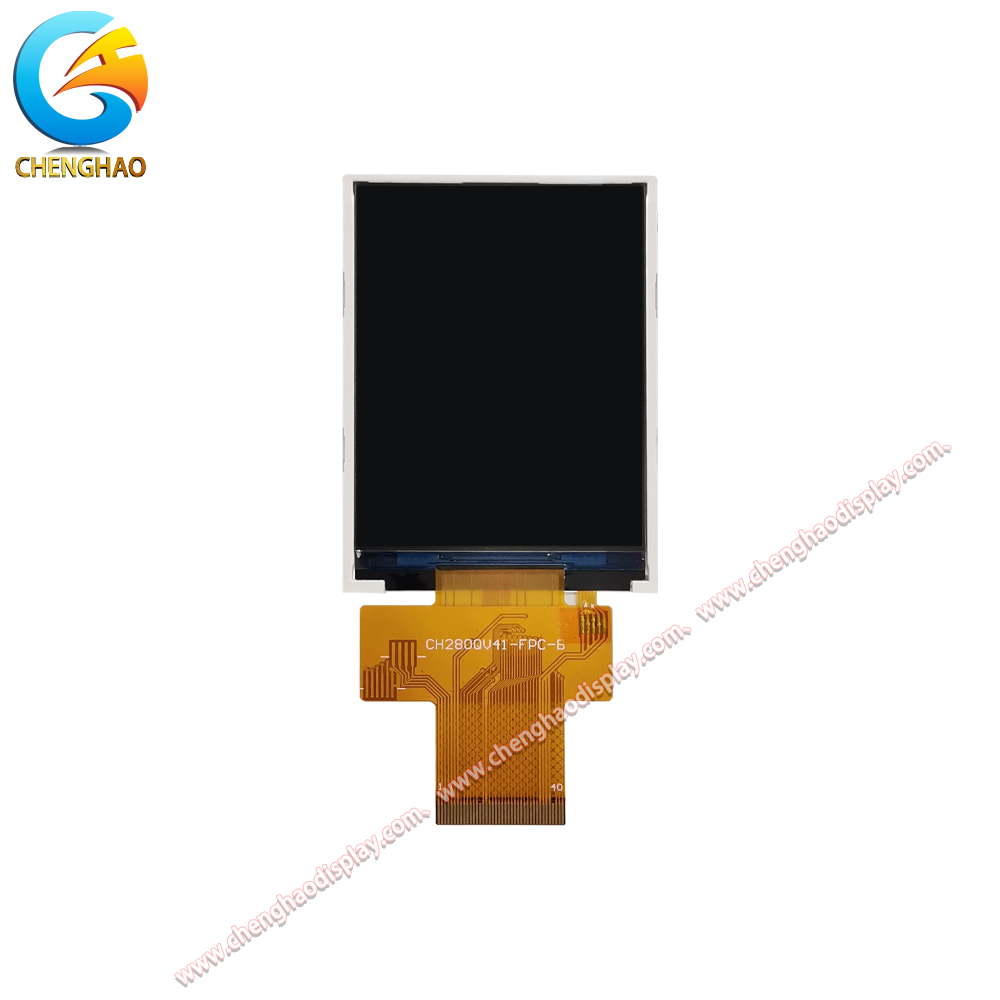

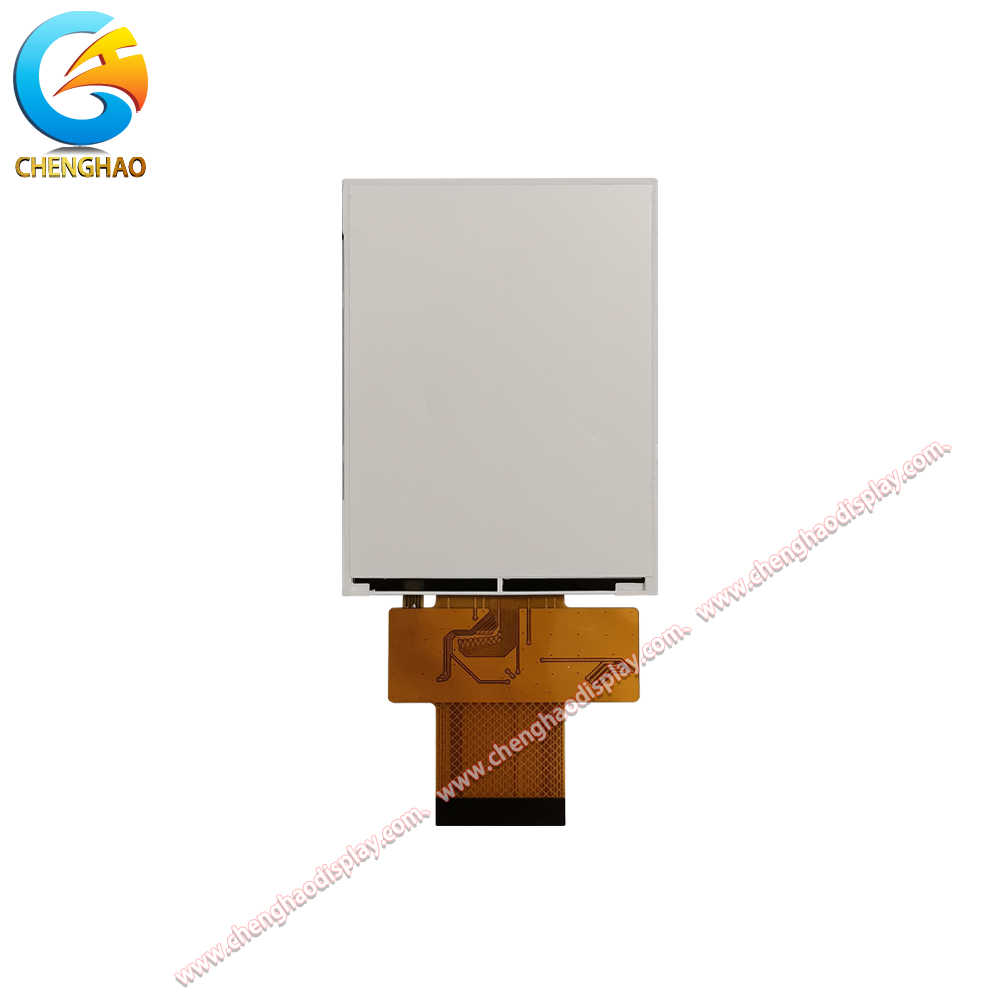

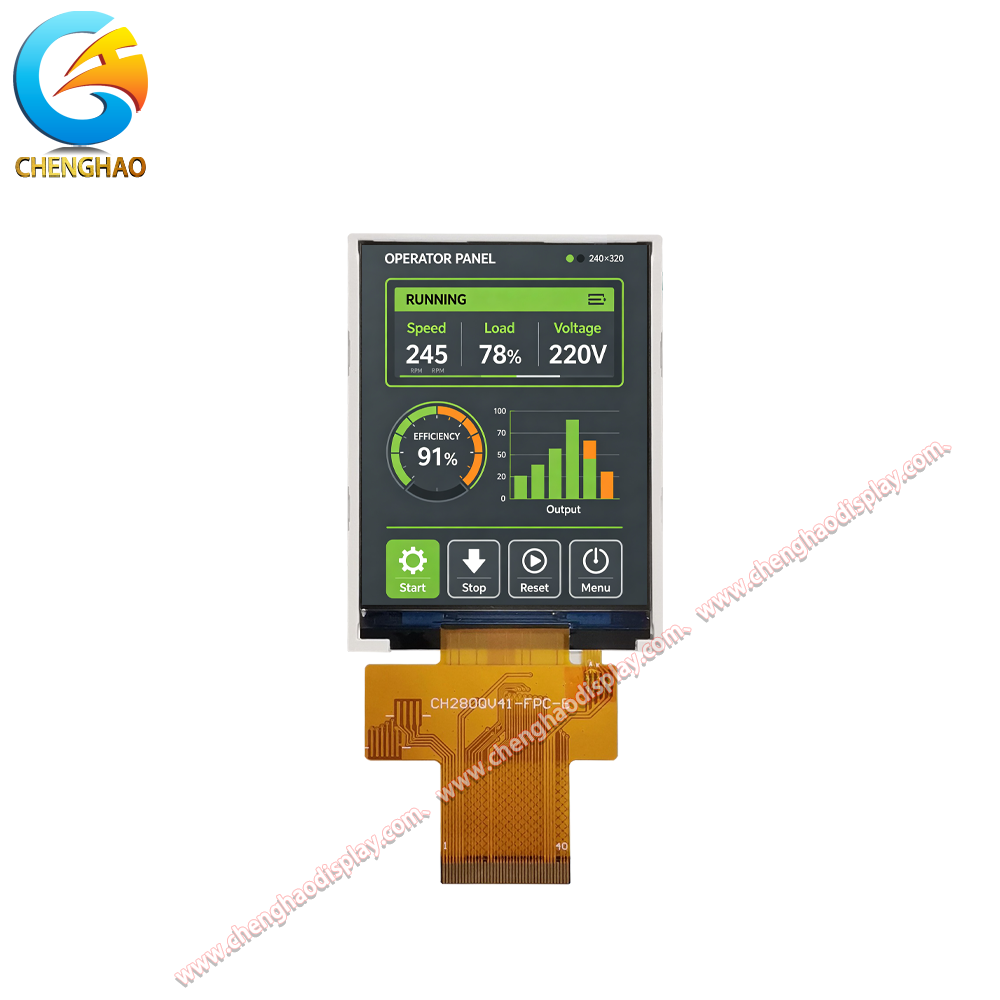

2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI
2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI
2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI 2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI 2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI 2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI
Contact nu

2.8 Inch IPS TFT LCD Display Module 240x320 QSPI 300 Nits for Industrial HMI

Min. bestelaantal : 100 stuks Prijs : Contact us for quotation
Verpakking Details : Standaard exportpakket Levertijd : 7-15 werkdagen
Betalingscondities : T/T Levering vermogen : 300.000 stuks/maand
Plaats van herkomst: China Merknaam: chenghao optoelectronic
Certificering: RoHS & CE & FCC Modelnummer: CH280QV41A
Document: Productenbrochure PDF

Gedetailleerde informatie
Modulenr: CH280QV41A Weergavemodus: IPS / Doorlatend / Normaal Zwart
Schermgrootte: 2,8 inch Oplossing: 240 x (RGB) x 320 punten
Kijkrichting: 80/80/80/80 (alle weergaven) Schermhelderheid: 300 CD/m2
Module-interface: QSPI FPC-pincodes: 40 pinnen
Bedrijfstemperatuur: -20 ~ +70°C Opslagtemperatuur: -30 ~ +80°C
Modulegrootte: 50,00 x 69,20 mm (LCM-omtrek) Actieve gebiedsgrootte: 43.20 x 57,60 mm

Productomschrijving

Product Description The CH280QV41A is a 2.8 inch IPS TFT LCD display module with 240 x (RGB) x 320 resolution and a 40-pin QSPI interface. It provides a typical brightness of 300 cd/m2, 262K colors, and an 80/80/80/80 viewing direction for consistent readability from multiple positions. The panel uses an IPS transmissive normally black mode with a 50.00 x 69.20 mm outline and a 43.20 x 57.60 mm active area. Operating temperature ranges from -20 to +70 degrees Celsius, while
