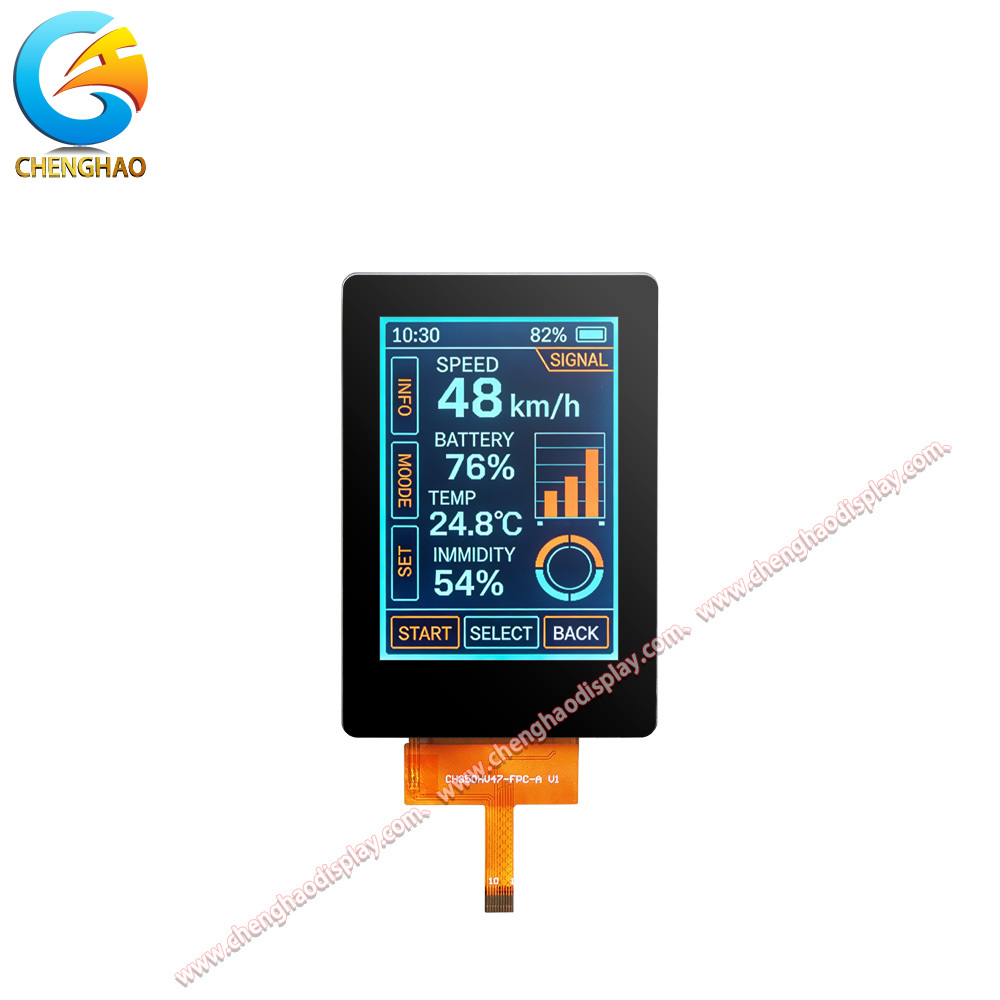

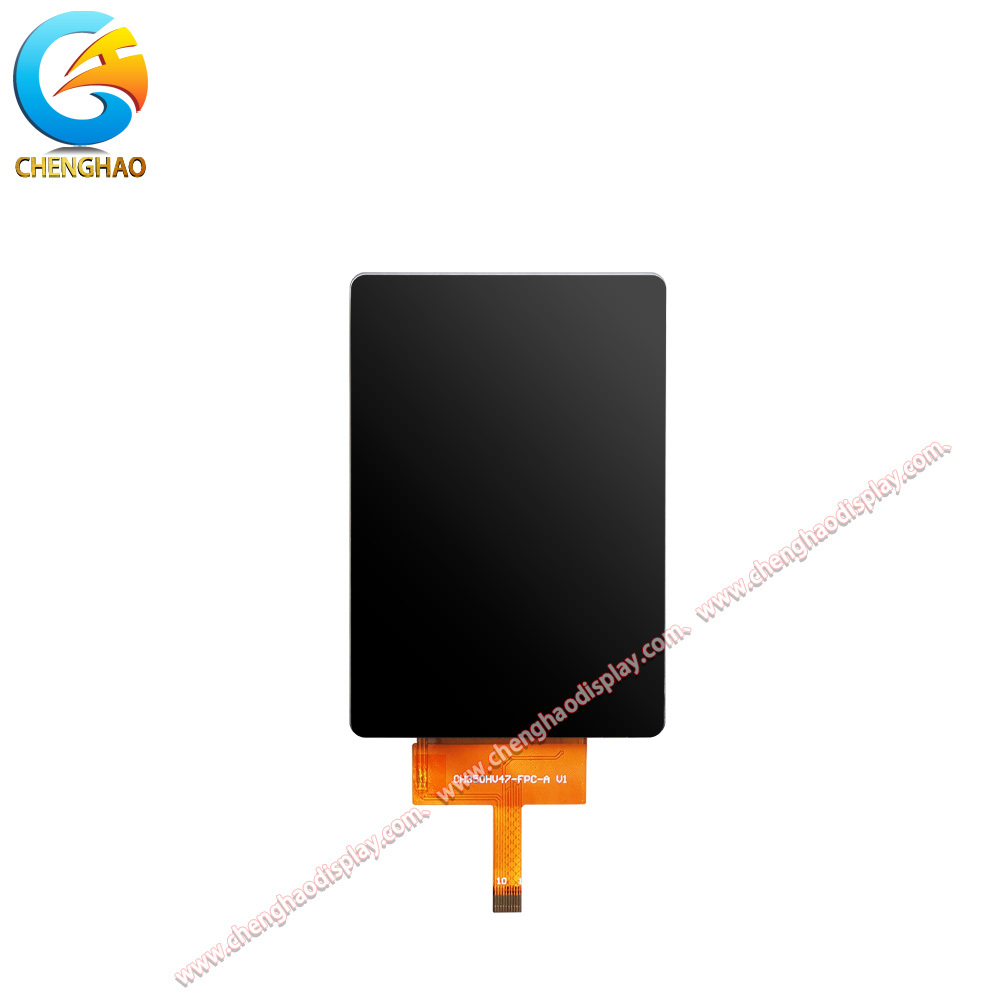

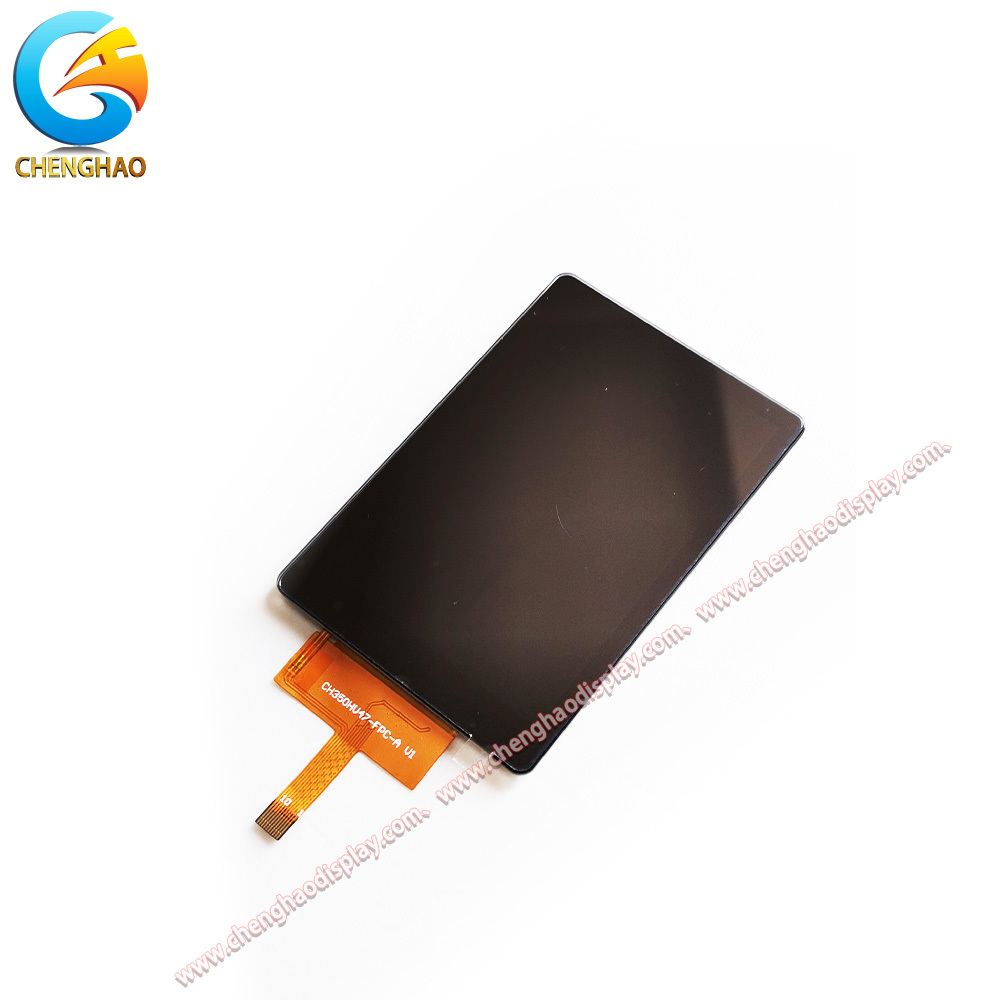

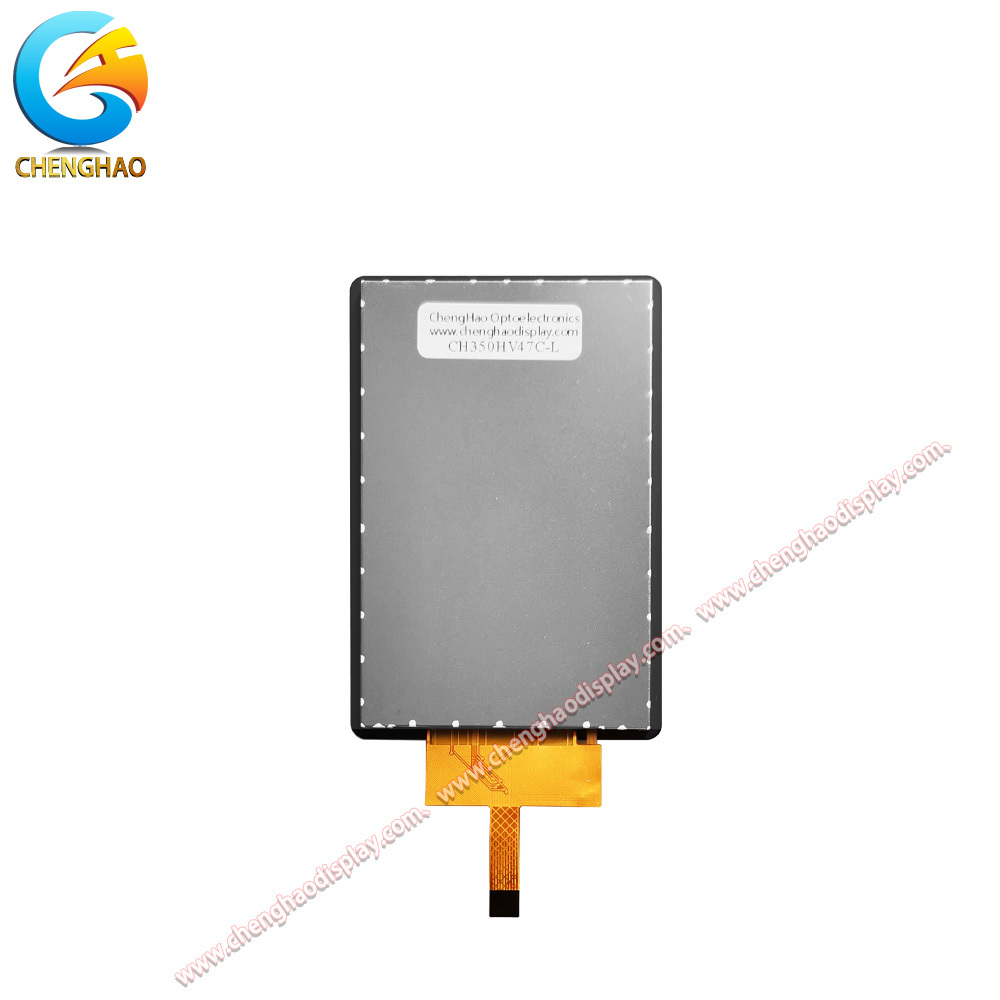

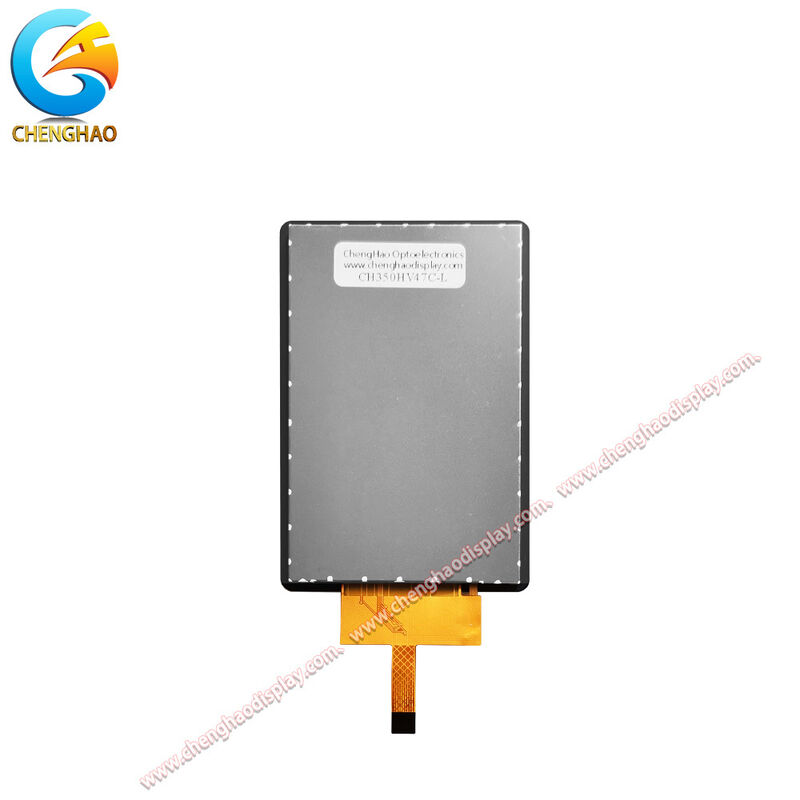

CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover
Contact nu

CH350HV47C-L 3.5 Inch 320x480 IPS TFT LCD Display Module with SPI and Thick Glass Cover

Min. bestelaantal : 100 STUKS Prijs : Contact us for quotation
Verpakking Details : Standaard exportpakket Levertijd : 7-15 werkdagen
Betalingscondities : T/T Levering vermogen : 300.000 stuks/maand
Plaats van herkomst: China Merknaam: chenghao optoelectronic
Certificering: RoHS & CE & FCC Modelnummer: CH350HV47C-L
Document: Productenbrochure PDF

Gedetailleerde informatie
Modulenr: CH350HV47C-L Weergavemodus: IPS / Doorlatend / Normaal Zwart
Schermgrootte: 3,5 inch Oplossing: 320 x 480 punten
Kijkrichting: 80/80/80/80 Schermhelderheid: 800 cd/m2 (min.)
Module-interface: SPI FPC-pincodes: 10
Bedrijfstemperatuur: -25 ° C tot +70 ° C Opslagtemperatuur: -30°C tot +80°C
Modulegrootte: 58,00 x 86,00 x 4,10 mm Actieve gebiedsgrootte: 48.96 x 73,44 mm

Productomschrijving

Product Description The CH350HV47C-L is a 3.5 inch IPS TFT LCD display module with a 320 x 480 pixel resolution and full 80/80/80/80 viewing angles. Its transmissive, normally black panel delivers a minimum brightness of 800 cd/m² through a 10-pin SPI interface. The module combines a 2.1 mm TFT assembly with a 1.8 mm glass cover lens and 0.2 mm optical adhesive for a total thickness of approximately 4.1 mm. The active area measures 48.96 x 73.44 mm, and the outline is 58.00 x
